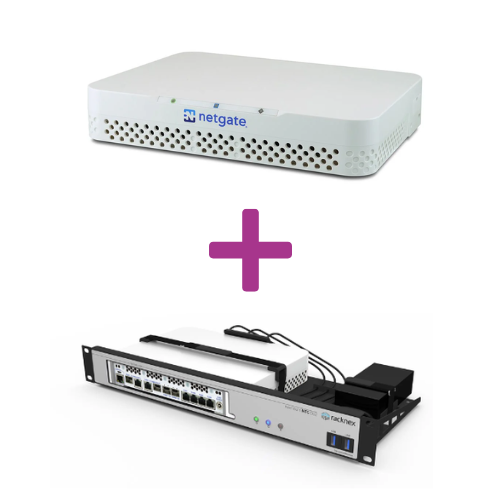

Bundle: Netgate 6100 MAX pfSense+ Security Gateway + Netgate 4100 / 6100 Rackmount Kit

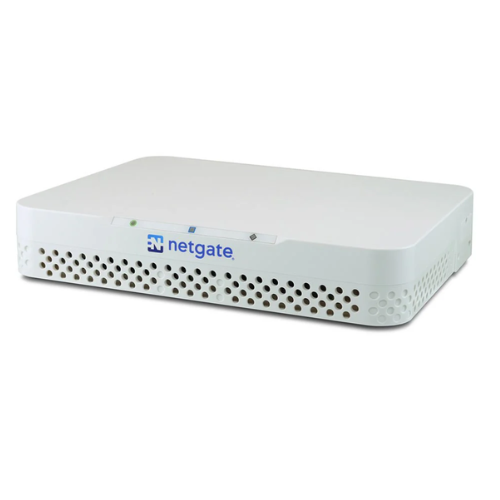

The Netgate® 6100 with pfSense® Plus software is one of the most versatile security gateways in its class. It combines the power of an Intel C3558 quad-core CPU with integrated (QAT) QuickAssist technology & AES-NI and 8 GB of memory for a fast user experience, delivering over 18 Gbps of L3 routing across 8 independent 1 GbE, 2.5 GbE and 10 GbE flexible WAN/LAN ports. The 6100 is capable of running high-throughput firewall, routing and VPN applications. Despite its high performance, the 6100 operates completely silently with a passive cooling system and is ideal for use in homes, small and medium-sized businesses or edge environments.

This appliance is an ideal edge gateway solution for businesses that require versatile network connectivity with flexible WAN/LAN connections from 1 to 10 Gbit/s and 8 GB DDR4 memory for exceptional throughput performance.

Technical data

• CPU: Intel® Atom® C3558 with QAT, 4-core @ 2.2 GHz (Denverton family)
• CPU Cores: Quad Core
• Network Interfaces: 2 x 10 Gbps SFP+ cage (WAN)
  2 x Auto media detect 1 Gbps (RJ45 copper / SFP fiber) „Combo Port“ (WAN)
  4 x 2.5 Gbps RJ-45 „direct“ (unswitched) ethernet (LAN)
• Storage: 128 GB NVMe M.2 SSD
• Memory: 8 GB DDR4 w/o ECC, single channel
• Expansion: 2 x m.2 (Key-B slot) with dual-SIM (LTE, Wi-Fi, or NVMe) (PCIe, USB 2.0, USB 3.0)
  1 x Mini-PCie Slot (Wi-Fi Only)
• Misc: 1 x auto-detect console port: „Cisco pinout“ RJ45 + micro-USB (micro-USB cable included with each system)
• USB: 2 x USB 3.0 jacks (USB-A female) Located on left side rear when viewed from system front
• LED: 3 x 4-color LEDs (RGB + amber) Software / bootloader controllable via Microchip MCU
• Enclosure: Desktop – Aluminum, plastic, and steel enclosure. 254 x 200 x 47.63 mm (10 x 7.88 x 1.88 inches)
• Cooling: Passive
• Power: External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 5.0A (60W), threaded (locking) barrel connector.
  Specifications:
  AC Inlet: IEC320-C7 (2 PIN) – Power Cord: One US, UK, EU or ANZ power cord included
  US Power Cord: NEMA 1-15-P to IEC320-C7
  UK Power Cord: BS 1363 to IEC320-C7
  EU Power Cord: CEE7/16 to IEC320-C7
  ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
• Operating Temperature: 0°C (32°F) to 40°C (104°F) – ambient
• Certifications: FCC (Class B), IEC / CE, CB, UL, RoHS, RCM, UKCA

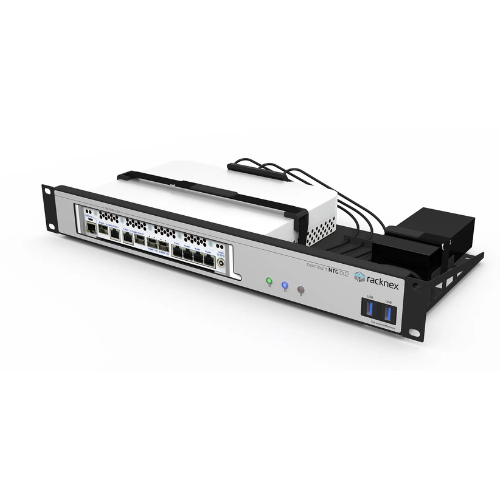

Rack Mount Kit “NM-NTG-002″ allows you to mount your Netgate 4100 and 6100 cleanly in the 19” rack. Duo the inverted installation and a keystone + cable combination for the two USB 3.0. All connections are conveniently accesable on the front of the rack mount.
This makes further wiring in the rack much easier.

At the right end of the rack mount the power supply can be mounted.
The power cable is routed next to the Netgate through a small cutout extension on the front of the rack mount kit.

The Netgate 4100 and 6100 are mounted securely and non-slip on the rack mount kit using a special Strap System. Without using screws or other aids acting on the device.

The straps are fixed with high-quality Velcro. In combination with our spacer, a sufficient distance is created between the Velcro and the Netgate to prevent damage to the housing.
This also prevents a possible loss of warranty.

Cutouts on the bottom and side surfaces of the rack mount kit ensure sufficient cooling in the system.

Even after attachment to the rack mount kit, the outlets are not covered by our screwless Strap System.

Optionally, you can use the “LED Light Guide Set” to view the various status indicators of your Netgate on the front of the rack mount.

A front foil labels each connector and LED and gives the Netgate 4100 rack mount / Netgate 6100 rack mount a unique look.

Rack: 19 inch
Rack-Einheit: 1,33 HE
Material: Steel
Color: Black RAL 9005
Brand: racknex
Abmessungen: 483 × 210 × 58 mm
