Netgate 2100 MAX pfSense+ Security Gateway

The Netgate® 2100 Security Gateway Appliance with pfSense® Plus software offers unbeatable performance and flexibility in its class. It is ideal for home use, remote workers and small businesses that need more computing resources to utilise multiple pfSense add-on packages and VPN performance for multiple user and site-to-site connections. Equipped with a dual-core ARM Cortex A53 1.2 GHz CPU, a dedicated 1 GbE WAN port (RJ45/SFP combo), (4) 1 GbE Marvell switch ports, 4 GB DDR4 RAM, and expandable storage. The 2100 has additional expansion slots for DIY LTE, Wi-Fi or M.2 SSD expansion.

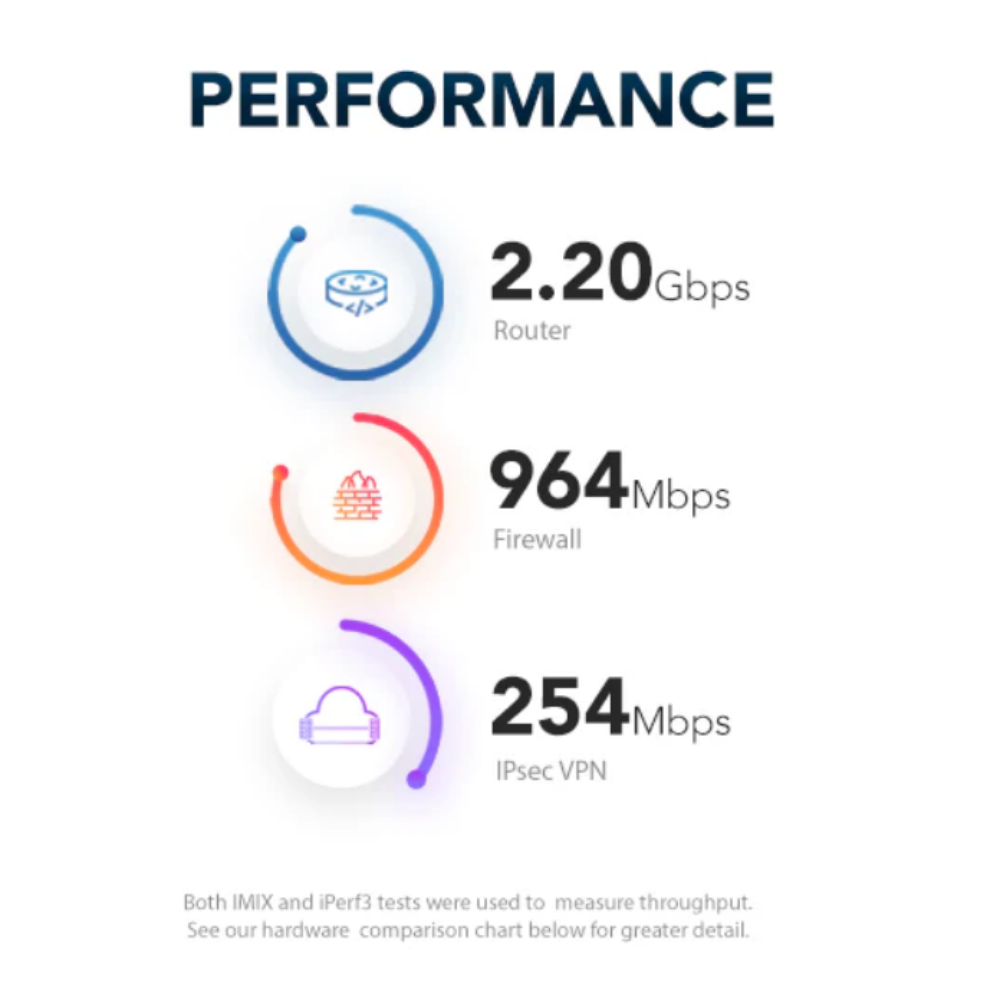

The Netgate 2100 is a compact and powerful desktop device. With a dual-core ARM Cortex-A53 processor running at 1.2 GHz and 4 GB of DDR4 RAM, the Netgate 2100 is ideal as a 2.20 Gbit/s router, 964 Mbit/s firewall or 254 Mbit/s IPsec VPN solution.

Technical data

• CPU: Marvell Armada 3720 (88F3720) ARMv8-A 64-bit Cortex A53 @ 1.2GHz with NEON SIMD and FPU
• CPU Cores: Dual Core

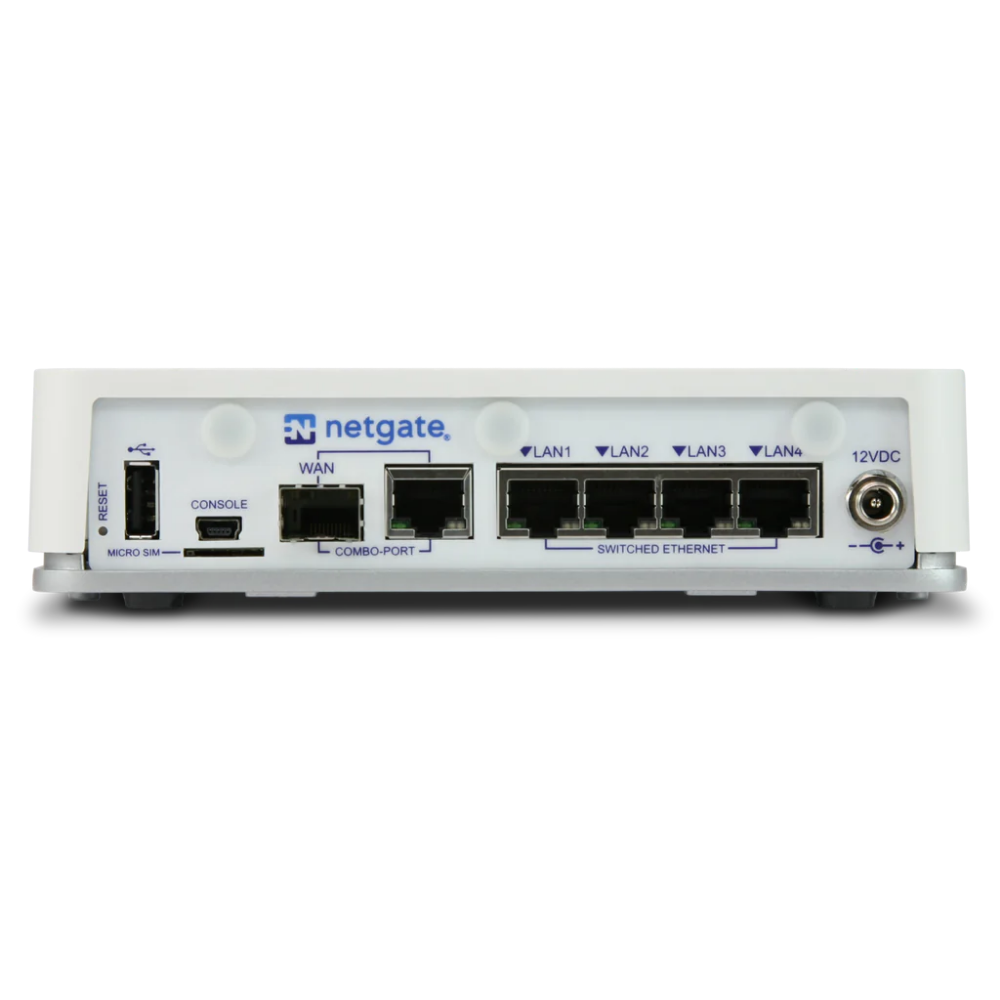

• Network Interfaces: 1 x 1 Gigabit Ethernet WAN port (RJ45 / SFP Combo)
  4 x 1 Gigabit Ethernet LAN ports (Marvel 88E6141 switch)
  LAN ports can be repurposed for additional WAN ports
• Storage: 128 GB M.2 SATA 2242 SSD (not NVMe compatible)
• Memory: 4 GB DDR4 (not expandable)
• Expansion: 1 x M.2 ‘B’ key sockets (SSD, LTE) 1x miniPCIe (WiFi) microSIM slot
• Console Port: MiniUSB (console cable included)
• USB: 1 x 2.0 port
• LED: 3 x full color RGB LEDs (Pattern info here)
• Enclosure: Desktop 42.2 mm (1.7″) tall x 108 mm (4.25″) deep x 172.7 mm (6.8″) wide with integrated keyholes for wall mount
• Cooling: Passive
• Power: External ITE P/S AC/DC 100-240V, 50-60 Hz, 12V 2.0A, threaded barrel connector
  AC Inlet: IEC320-C7 (2 PIN)
  One US, UK, EU or ANZ power cord included
  US Power Cord: NEMA 1-15P to IEC320-C7
  UK Power Cord: BS 1363 to IEC320-C7
  EU Power Cord: CEE7/16 to IEC320-C7
  ANZ Power Cord: AS 3112 (ungrounded) to IEC320-C7
• Operating Temperature: 0°C (32°F) to 50°C (122°F)
• Certifications: CE, FCC (Class B), RoHS, UL, RCM, VCCI, UKCA

Learn more about this appliance on the official Netgate website.

Software

pfSense Plus software offers the performance, flexibility, reliability and business assurance you expect from leading secure networking applications:

• Flexible options for third-party applications
• Proven management mechanisms
• Proven reliability
• Full support for business assurance

At a fraction of the cost of proprietary alternatives, pfSense Plus software is the perfect solution. Popular use cases for pfSense Plus include load balancing, traffic shaping, captive portal, UTM device, DNS/DHCP server, IDS/IPS, failover WAN and many more.
